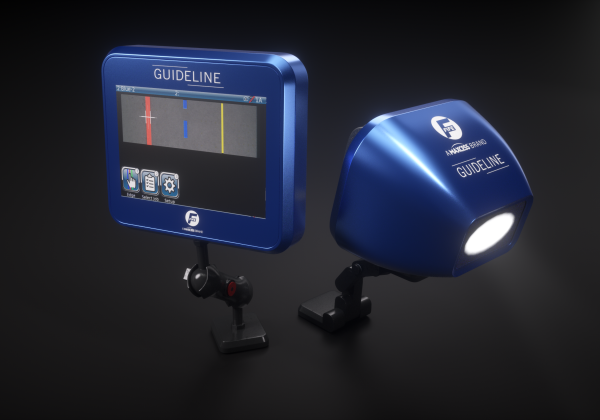

GuideLine Digital Line Guide Sensor

Click on image to download high resolution version

The GuideLine digital line sensor is capable of detecting lines, edges of lines and graphic patterns, such as bar codes at an extremely competitive price point. It can also be used in low contrast conditions or with different patterns located close to each other, where traditional line sensors do not work. GuideLine can also edge guide transparent films.
The included operator interface for the GuideLine sensor features a color touch screen, allowing for the image of the web to be displayed in full color, making the sensor calibration easy and intuitive. With a 32 mm wide filed of view and the high resolution, GuideLine is suitable for the most demanding line guide applications
  • Ability to easily guide to lines, edges of lines and graphic patterns on the fly
  • Up to 10X better accuracy than the competition
  • Color camera with intuitive 5” color touchscreen to easily lock on to lines
  • 32 mm field of view, the widest field of view on the market
